Yanmao Intelligent Equipment (Suzhou) Co., Ltd.
Contact: Ren Hongbing
Mobile: 18016000798
Landline: 0512-53635091
Fax: 0512-53635090
QQ: 18016000798
Website: www.cfan.net.cn
Address: No.8, Xingsheng Industrial Park, 11 Xingye South Road, Taicang City, Jiangsu Province

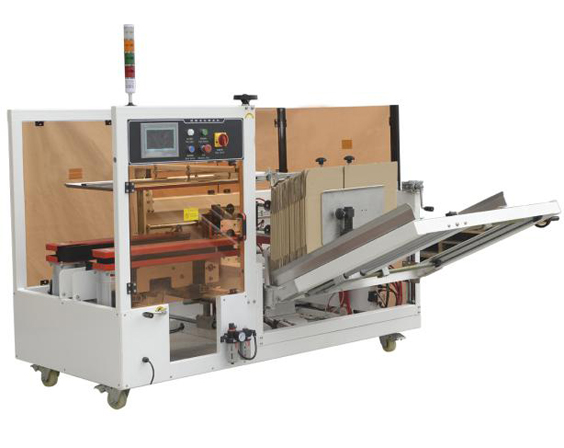

1. Power: 220V 50Hz 400W
2. Pressure: 6㎏ / cm2
3. Air consumption 200L / min
4. Machine dimensions: L2000㎜ × W1950㎜ × H1500㎜
5. Machine weight: 400㎏
6. Carton specifications: 410 <L + W <910 W180-390,620> W / 2 + H> 310 (carton specification list to be provided)
7. Tape width: 4.8-7.2 ㎝
8. molding speed: ≤ 10 boxes / minute (depending on the size of the carton)
9. stand-alone production efficiency: ≥ 95%
10. Carton loss: 1 ‰
11. Out of the box: vertical molding
12. Machine Features:
u Equipment design and production line with the process and layout requirements, nice appearance, manufacturing process is good
u electricity, low water consumption, operation, adjustment and maintenance simple and quick
u The machine has good self-protection features, such as overload protection and safety gates
u tape and no cardboard box alarm function
u tank body: a can be placed about 50 unformed cartons (depending on the thickness of the carton) may be replenished
13. Electrical configuration:
? PLC control: Germany "Siemens" or France "Schneider"
? Contactor: France "Schneider"
? Sensor: Germany "P + F" or "SICK"
? button switch: France "Schneider"
? Man-machine interface: China "Xinjie" or Taiwan "WEINVIEW"
? Pneumatic components: Taiwan's "ARCADE" or gas legislation
Motor: Taiwan brand
14. Workflow: Suction box - Unpacking - Front and rear paper cover - Folding left and right paper cover - Seal the bottom
15. Environmental conditions: humidity ≤ 98%, temperature 0-40 ℃
|
|
