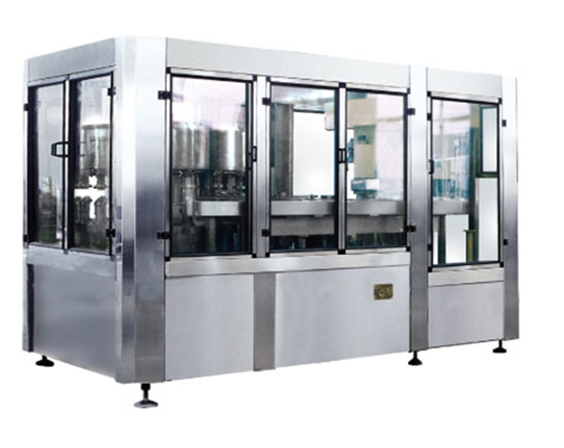

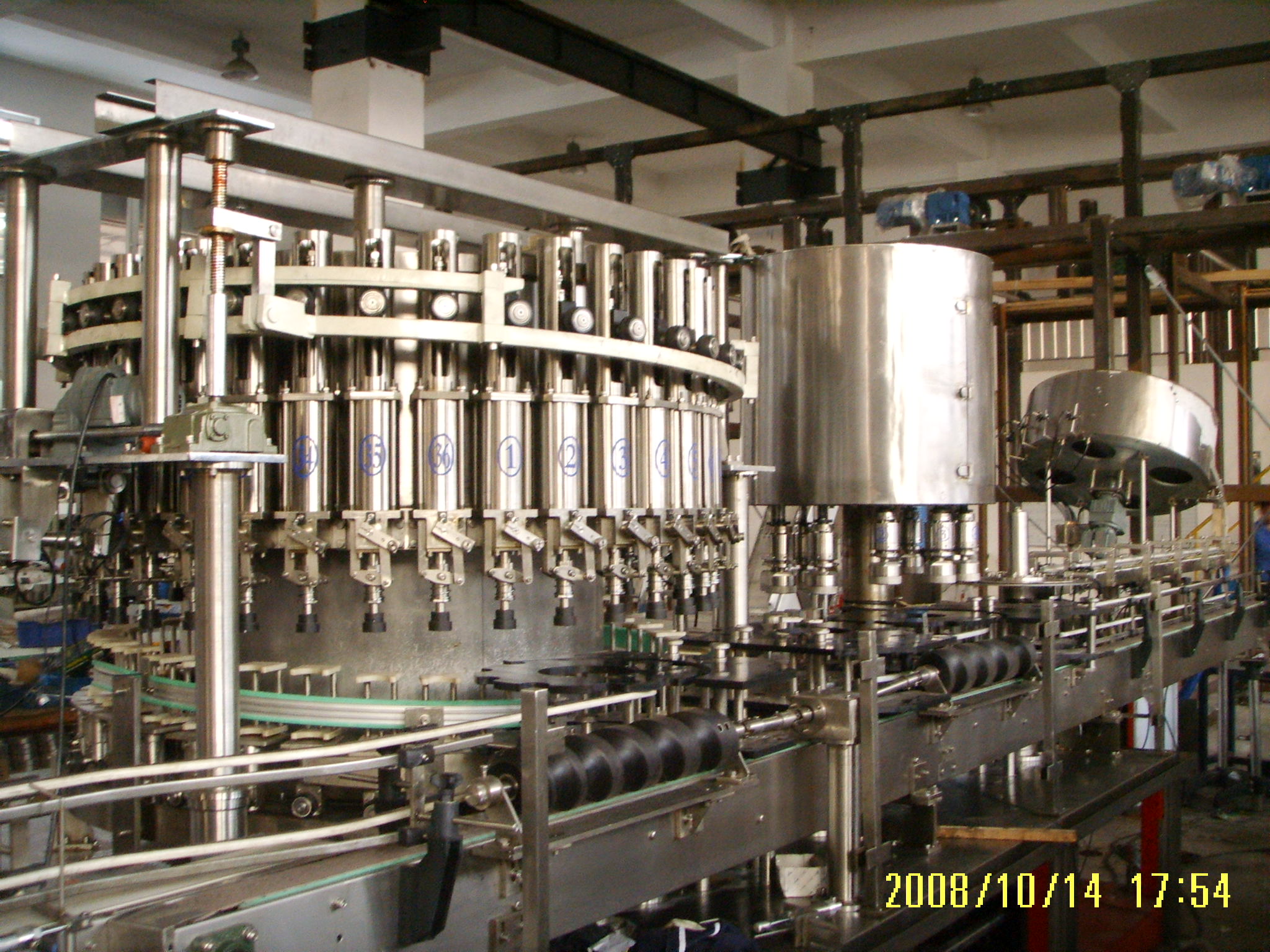

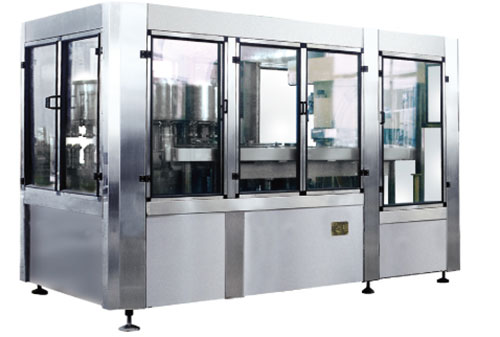

The machine will be filling machine and capping machine co-installed in a rack, and two machines share a power, a gear main transmission. This structure compared with the general two stand-alone production line has a compact structure, small footprint and footprint, and power installation capacity is only half the total capacity of two single machine, which can save users nearly 30% of the time The investment in electricity and the cost of electricity after putting into production can also save about 30%. Because two machines share a gear main transmission mechanism, the design ensures the synchronization of the two machines without the need to accurately adjust the synchronization between the two machines to produce the same. Thus more conducive to ensure that users of the products meet the requirements of high-quality health standards. The unit can run reliably at high speed and continuous state, so the unit has a high production efficiency. For white wine, rice wine, health wine, vegetable oil, shampoo, hand sanitizer, detergent, medicine, pesticides, chemical and other viscous liquid quantitative filling. Filling range: 30 ml - 5 liters; accuracy ≤ 1%.
machine type | XK-GZ36/10 | XK-GZ40/12 |
Power / Power | 380V 50HZ 3KW | 380V 50HZ 4KW |
Number of filling heads / number of capping heads | 36/10 | 40/12 |
Production capacity | 6000-10000Bottle / hour | 8000-12000Bottle / hour |
Applicable bottle diameter / cap specifications | Φ20mm-Φ90mm / Φ12mm-Φ70mm | Φ20mm-Φ90mm / Φ12mm-Φ70mm |
Machine size / weight | 2400*2000*2950mm 950 kg | 2500*2500*2950mm 1200 kg |
