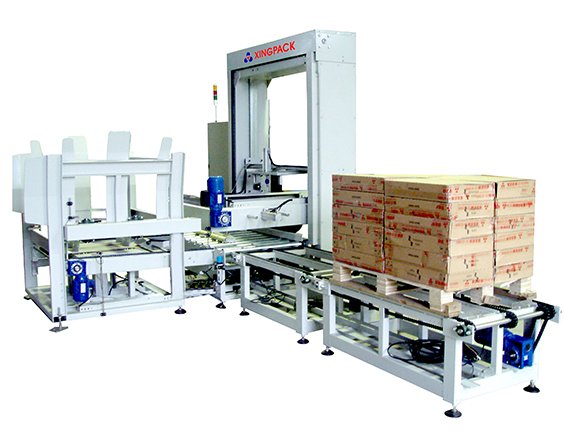

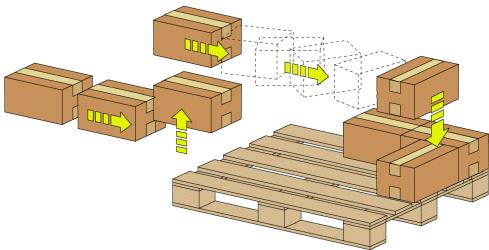

Palletizing machine is loaded into the container carton, according to a certain arrangement code on the tray, automatic stacking, stacking multi-layer, and then launched to facilitate the forklift transported to the warehouse storage. The device uses PLC + touch screen control, intelligent operation and management, easy and easy to grasp. Can greatly reduce the labor force and reduce labor intensity. Using high-speed, stable, space-saving concept design. Using separate off-board, faster, more space-saving. A multi-purpose machine, quick adjustment, do not have to worry about replacing the stack of products. Scope of application: Corrugated boxes, plastic boxes, barrel-shaped packaging, bag-like packaging.

★ Touch screen operation to achieve man-machine dialogue, can show the production speed, cause of the malfunction and location, high degree of automation. Using PLC programmable carton sorting stacking layer, pallet supply and discharge can be programmed into the program control.

★ Japan's CMC produced by the chain with good wear resistance, high precision, stable transmission and so on.

★ Germany FESTO or Taiwan CHELIC, Japan's SMC pneumatic components and cylinders, quality, reliable performance.

★ safety door, hood equipped with electrical induction device, when the cover door is opened, the machine stops working, personnel can be protected.

★ stack adjustment easy, simple, can be carried out on the touch screen. Stacking stable, efficient, can greatly save manpower.

★ Carton supply system uses brake motor control, to ensure that the pre-set position of the delivery of cardboard boxes

★ large capacity pallets, can accommodate 12-15 empty pallets, pallet can be automatically supplied.

★ motor (motor), reducer are used Nordic Germany products.

★ Do not need to change the stacking parts to complete several stacking methods.

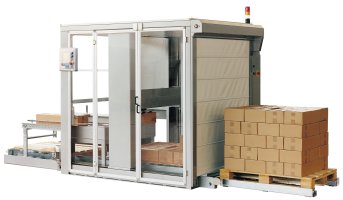

According to the actual site conditions and product features, we can make low palletizers for you. High palletizers; Servo palletizers; Robotic palletizers; Depalletizers
