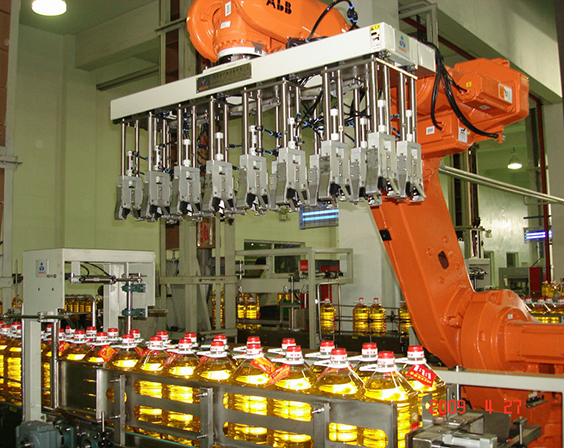

The robotic automatic cartoner has a wide range of applications, small footprint, reliable performance and easy operation. It can be widely used in automatic packing of various products in the fields of chemical industry, medicine, salt making and foodstuffs. The compact body that can be integrated in a compact packaging machine meets all your requirements for reach and payload. With motion control and tracking capabilities, the robot is ideally suited for flexible packaging systems, greatly reducing packaging cycle time. With its extremely high accuracy, coupled with its superior belt tracking performance, the pick-and-place precision is top notch, both in fixed position and in motion. Small size, fast, specially optimized for packaging applications. Equipped with a full complement of accessories (from integrated air and signaling systems to the gripper), package software is available that is easy to machine and easy to program.
machine type | XKSCE-01R |
Power / Power | 380V 50/60HZ 5KW |
Suitable carton | L250-500*W200-400*H100-450mm |
Packing speed | 20-40 bins / minute |
Packing method | Single box / multi box |
Use gas source | 6-7kg |
Machine size | 2300*1800*2550mm |
